CHF100A-5R5G/7R5P-4

Description

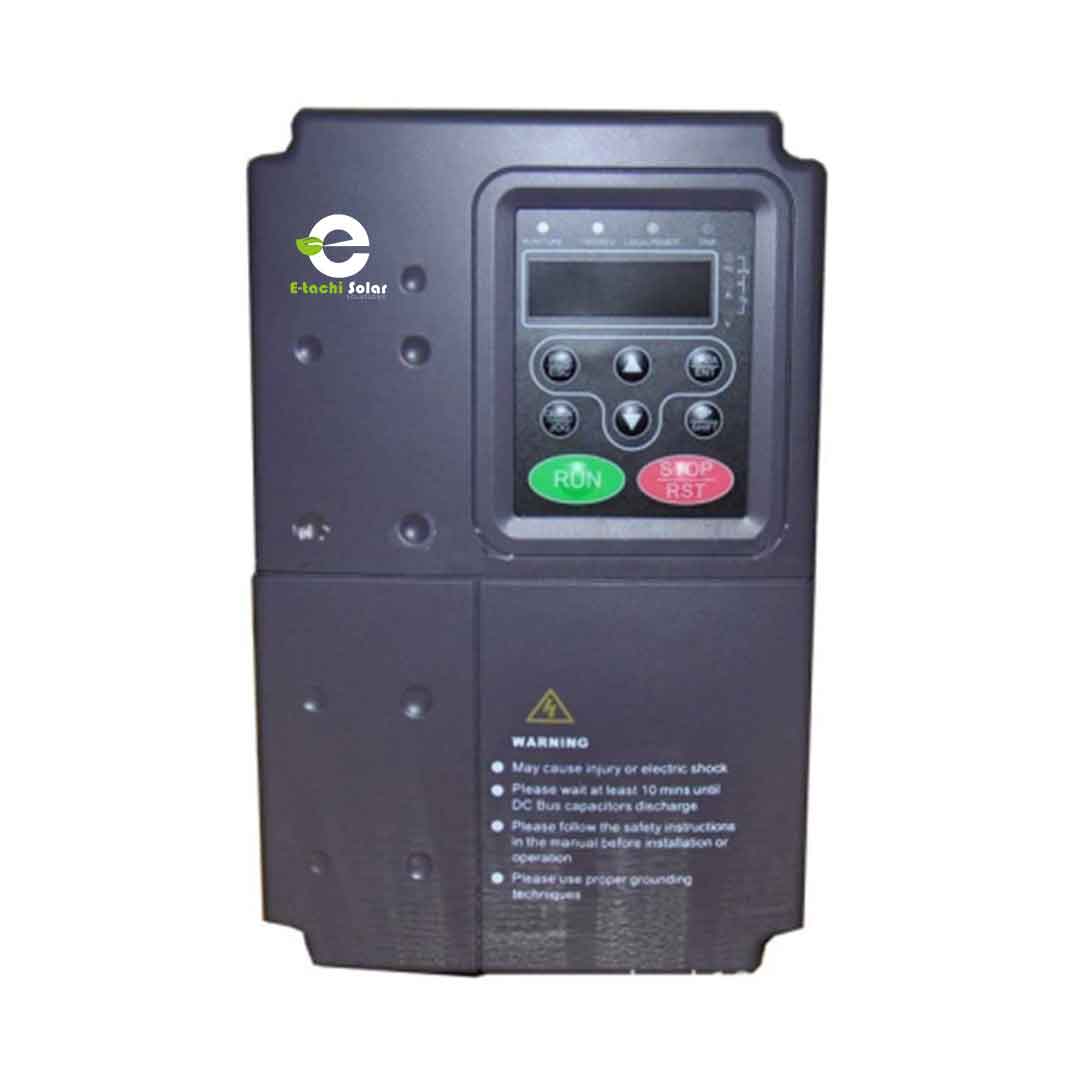

CHF100A-5R5G/7R5P-4 Inverter VFD Frequency AC Drive New 3 Phase 380V 5.5/7.5KW 15/20A Input

• Technology Features
• Input & output
• Input Voltage Range: 380/220V+-15%
• Input Frequency Range: 47~63Hz
• Output Voltage Range: 0~rated input voltage
• Output Frequency Range: 0~400Hz
• I/O Features
• Programmable Digital Input: Provided 7 terminals which can support ON-OFF inputs, 1 terminal which can support high speed pulse input and support PNP, NPN
• Programmable Analog Input: AI1 can accept input of -10V~10V, AI2 can accept input of 0~10V or 0~20mA.
• Programmable Open Collector Output: Provide 1 output terminal (open collector output or high speed pulse output)
• Relay Output: Provide 2 output terminals
• Analog Output: Provide 2 output terminal, whose output scope can be 0/4~20mA or 0~10V, as chosen.
